Bluetooth GPS Rugged PDA Android Industrial Handheld Terminal Scanner

Product Categories
Shenzhen Effon Ltd
Contact Now

Bluetooth GPS Rugged PDA Android Industrial Handheld Terminal Scanner

Brand Name : Effon

Model Number : HS50

Certification : CE,ROHS, FCC, IP67

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram，Paypal

Supply Ability : 20000 Pieces Per Month

Delivery Time : 5-8 days

Packaging Details : 1pcs into a retail box

CPU : Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor

Operating System : Android 9.0 system

Bluetooth : Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters

Battery Capacity : Rechargeable polymer battery (3.8V 4200mah) removable

Screen Size : 5.5-inch HD Full screen

Data communication : WLAN/WWAN/Bluetooth/GNSS

Barcode scanner : 1D/2D Barcode Scanner Optional

Advantage : High speed Octa- core/ Support fast charging

Drop specification : 6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature

Protection level : IP66

Feature : ODM rugged bluetooth GPS with Quad-Core 1.3G tablet pc pda mobile handheld qr code 2d barcode scanner pdf417 1D laser scanner

Color : Black

Contact Now

ODM rugged bluetooth GPS with Quad-Core 1.3G tablet pc pda mobile handheld qr code 2d barcode scanner pdf417 1D laser scanner

High-speed operation performance:
With androd 9.0 operating system, matching 64 bit quad core 2.0GHz high speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.
Excellent identification ability :
Fully support 1D and 2D barcode scanning,NFC(optional).
Convenient appearance design:
Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.5 inch IPS (720x1440) Work even with water or Gloves.
Abundant means of data transportation(option):
2G,3G,4G,Wifi,Bluetooth,etc.
Industrial grade durability:
IP66 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof,dustproof provide long time using without fatiguet.
HD Camera:
Front 2 megapixel camera,Rear 13 megapixel camera, is convenient for client to collect all kind of images and video.
Multiple extensions:
Support GPS , AGPS and Beidou compass navigation.
Always-available wireless connection:
Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.

Structural Parameter

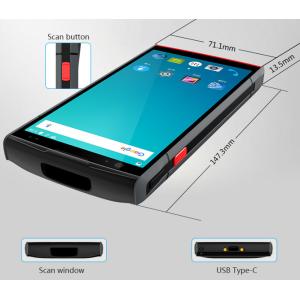

Dimensions 147.3mm(L)×71.1mm(W)×13.5mm(D)
Weight <500g
Display Screen 5.5 inch IPS color display with resolution 720*1440
Expand Port SIM card, micro SD (TF) Card
Communication Interface Type-C USB
Input Mode Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity Rechargeable polymer battery (3.8V 4200mAh) removable
Frequency 8ohm 1W speaker
Key Silicone button
Performance Parameter
OS Android 9.0
CPU Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor
RAM 2G/3G RAM
Flash ROM Standard 16G/32G NAND Flash Storage
micro SD/TF port (Max up to 128G)
Data Communication
WI-FI Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol
FDD/TDD-LTE 4G FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41
WCDMA 3G WCDMA(850/900/1900/2100MHz)
GSM 2G GSM(850/900/1800/1900MHz
Bluetooth Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters
Standard Modules
Rear camera 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting
Front camera 2MP color camera
GNSS Support GPS, Galileo, Glonass, Beidou
Operating Environment
Operating -20°C to 55°C
Storage Temperature -40°C to 70°C
Environment Humidity 5%RH-95%RH(no condensation)
Drop Specifications 6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature
Roll Specifications 500×0.5m rolling for 6 sides
Sealed Environment IP66
2D CMOS (OPTIONAL)
CMOS Scanner Honeywell N3601 Honeywell N6603
The Sensor Resolution 752(level)×480(vertical)pels(gray level)
Ambient Light All dark 9000ft.candles/96900 lux
focus element (VLD) 655nm ± 10nm
Support bar code type PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
NFC Reader (Optional)
Frequency 13.56MHz
Protocol Support ISO14443A/B, 15693 agreement
Range 2-5cm
